Mixing water center

All Products

  • KLB-8001

    KLB-8001 | Mixing water center

    Connector size: G1"

    Starting temperature of water pump: 0℃~90℃ (factory setting 35℃)

    Water supply temperature: ≤95℃

    Maximum power: 100W (when the water pump is running)

    Connected to heat source interface: G1"

    Maximum working pressure: 10bar

    Center spacing: 220mm

    Applicable area: 200m ³ below


  • KLB-8002

    KLB-8002 | Mixing water center

    Rated voltage: AC220V 50HZ

    Temperature adjustment range: 35 ℃~65 ℃ (factory set at 45 ℃)

    Connection to water distributor interface: G1 "

    Water pump start temperature: 0C~90C (factory set at 35 ℃) Water supply temperature: ≤95 ℃

    Maximum power: 100W (when the water pump is running)

    Connected to heat source interface: G1"

    Maximum working pressure: 10bar

    Center spacing: 220mm

    Applicable area: 200m ³ below


  • KLB-8004

    KLB-8004 | Mixing water center

    Rated voltage: AC220V 50HZ

    Temperature adjustment range: 35 ℃~65 ℃ (factory set at 45 ℃)

    Connected to water distributor interface: G1"

    Starting temperature of water pump: 0C~90C (factory setting 35)

    Water supply temperature: ≤95 ℃

    Maximum power: 100W (when the water pump is running)

    Connected to heat source interface: G1"

    Maximum working pressure: 10bar

    Center spacing: 220mm

    Applicable area: 200m ³ below


  • KLB-8006

    KLB-8006 | Mixing water center

    Rated voltage: AC220V 50Hz

    Centre-to-centre distance between inlet and return outlets: 85mm

    Temperature adjustment range: 35 ℃~65 ℃ (factory set at 45 ℃)

    Connected to water distributor interface: G1“

    Starting temperature of water pump: 0 ℃~90 ℃ (factory set at 35 ℃)

    The water supply temperature:≤ 95C

    Applicable area: below 200m

    Maximum power: 100W (when the water pump is running)

    Connected to heat source interface: G1"

    Maximum working pressure: 10bar

    System circulating pump lift: 3,5,6 meters, adjustable in three gears

    Center spacing: 220mm


  • KLB-8007

    KLB-8007 | Mixing water center

    Rated voltage: AC220V 50HZ

    Temperature adjustment range: 35 ℃~65 ℃ (factory set at 45 ℃)

    Connected to water distributor interface: G1"

    Starting temperature of water pump: 0℃~90℃ (factory setting 35℃)

    Water supply temperature: s95 ℃

    Maximum power: 100W (when the water pump is running)

    Connected to heat source interface: G1"

    Maximum working pressure: 10bar

    Center spacing: 220mm

    Applicable area: 200m ³ below


  • KLB-8008

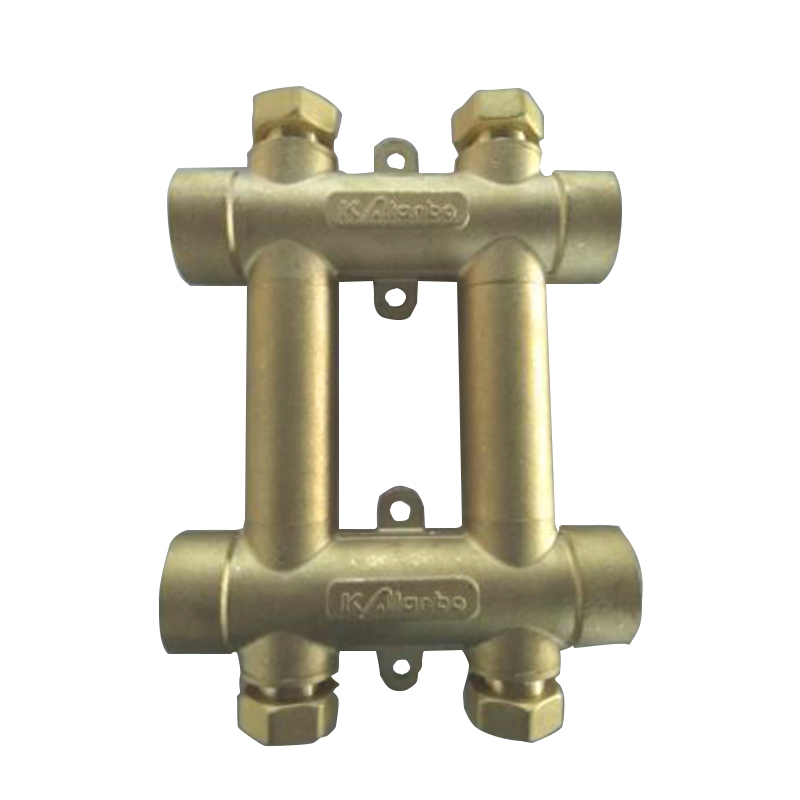

    KLB-8008 | Hydraulic balance tank

    Nominal diameter: DN25

    Upper nozzle: G1 "inner thread

    Lower nozzle: 1/2 "outer thread (flat seal)

    Pipe orifice spacing: 125mm

    Installation length of water pump: 180mm

    Temperature gauge range: 0~120 ℃

    Kvs value: 9.7m/h (direct circulation pump set)

    Kvs value: 6.5m/h (mixed water circulating pump set

    Working temperature: up to 110 ℃

    Working pressure: 6MPa


  • KLB-8009

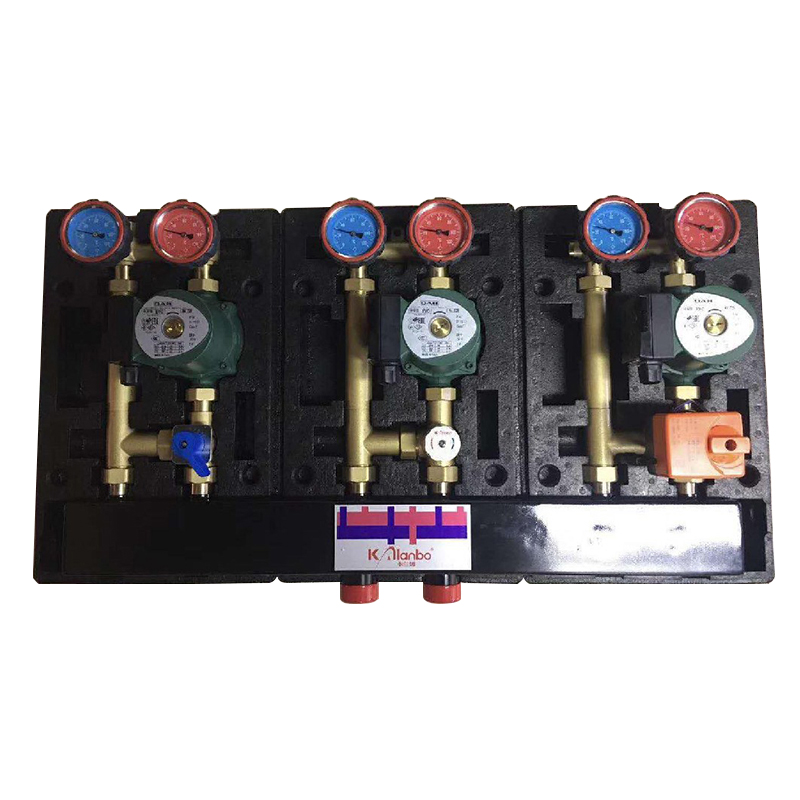

    KLB-8009 | KB layered hydraulic balance control module

    Scope of application: Single family villas and large floor heating systems with EPP environmentally friendly insulation shell

    Connection size: G1 /4 "thread mouth

    Outlet size: G1 "inner thread

    Interface spacing: 100mm, 185mm

    Water pump specifications: 15-6

    Temperature gauge range: 0~120 ℃

    Max working temperature: 110 ℃

    Working pressure: 10bar

    Kvs: 9.6m/h-6.2m3/h

    Power environment: 230v-50/60Hz


  • KLB-8009-1

    KLB-8009-1 | Adjustable high-temperature direct supply center

    Scope of application: Single family villas and large floor heating systems with EPP environmentally friendly insulation shell

    Connection size: G1 /4 "thread mouth

    Outlet size: G1 "inner thread

    Interface spacing: 100mm, 185mm

    Water pump specifications: 15-6

    Temperature gauge range: 0~120 ℃

    Max working temperature: 110 ℃

    Working pressure: 10bar

    Kvs: 9.6m/h-6.2m3/h

    Power environment: 230v-50/60Hz


  • KLB-8009-2

    KLB-8009-2 | Electric temperature control center

    Scope of application: Single family villas and large floor heating systems with EPP environmentally friendly insulation shell

    Connection size: G1 /4 "thread mouth

    Outlet size: G1 "inner thread

    Interface spacing: 100mm, 185mm

    Water pump specifications: 15-6

    Temperature gauge range: 0~120 ℃

    Max working temperature: 110 ℃

    Working pressure: 10bar

    Kvs: 9.6m/h-6.2m3/h

    Power environment: 230v-50/60Hz
