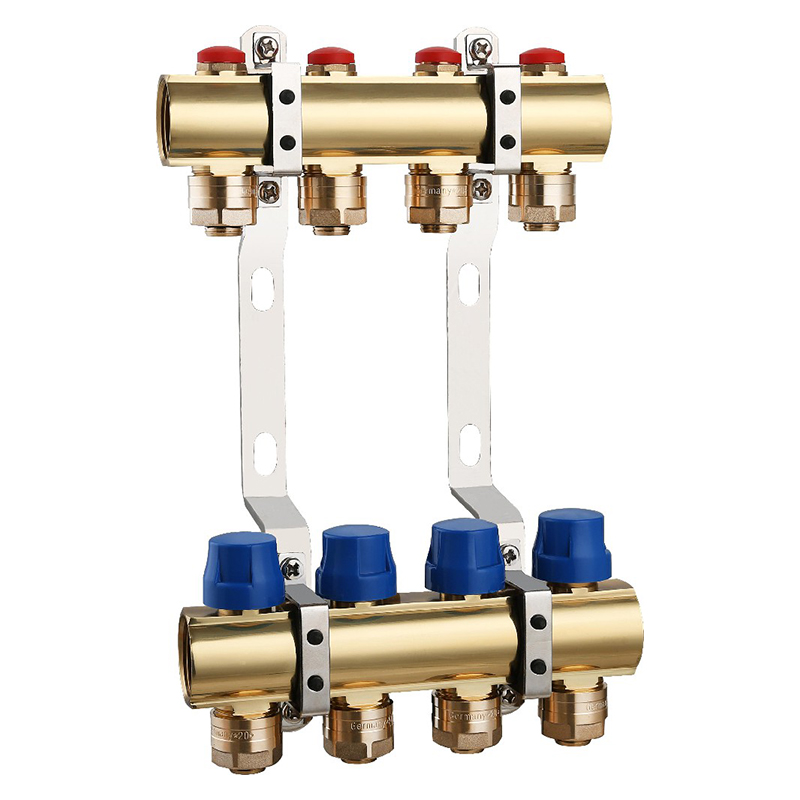

Model:KLB-7001
Name:MANIFOLD
All Products
-
HYDRAULIC BANLANCE TANK
-
hydraulic balance tank
-
magnetic cleaner
-
Prefilter
HYDRAULIC BANLANCE TANK
-
-
Control panel
-
control panel
-
Electric actuator
Control panel
-
-
Radiator Valve
-
Radiator Valve
-
Themorstatic head
Radiator Valve
-
-
Ball valve
-
Fittings
-
-
Stainless steel manifold
-
brass manifold
Manifold
-
-
Mixing water center
-
Mixing water center
Mixing water center
-
-
Bypass
-
bypass
Bypass
-
-
Other accessories
-
Other accessories
Other accessories
-
Main material: Brass
Applicable media: water, non corrosive liquids, saturated steam
Maximum working pressure: 1.6Mpa
Medium temperature: -20 ℃ ≤ t ≤ 120 ℃
Branch pipe interface: 16/20
Branch spacing: 50mm
Surface treatment: natural color antioxidant
| Code | Size | Ways | Packaging |
|---|---|---|---|
| KLB-7001-2 | 1"F | 2 | |
| KLB-7001-3 | 1"F | 3 | |
| KLB-7001-4 | 1"F | 4 | |
| KLB-7001-5 | 1"F | 5 | |
| KLB-7001-6 | 1"F | 6 | |
| KLB-7001-7 | 1"F | 7 | |
| KLB-7001-8 | 1"F | 8 |
